Upvc Pipes & Fittings
Nikolas Pipes & Fittings takes pride in offering a comprehensive range of UPVC pipes and fittings, meticulously engineered to meet the diverse needs of plumbing applications. We are manufacturing UPVC pipes under the standard ASTM-D1785 in both SCH-40 and SCH-80 and uPVC fittings made under the standard ASTM-D2467 in SCH-80. Nikolas Pipes & Fittings made from high-quality Unplasticized Polyvinyl Chloride (UPVC) resin, our pipes and fittings boast exceptional durability, corrosion resistance, and longevity, making them ideal for both residential and commercial projects.
UPVC ASTM D-1785 PLUMBING PIPE

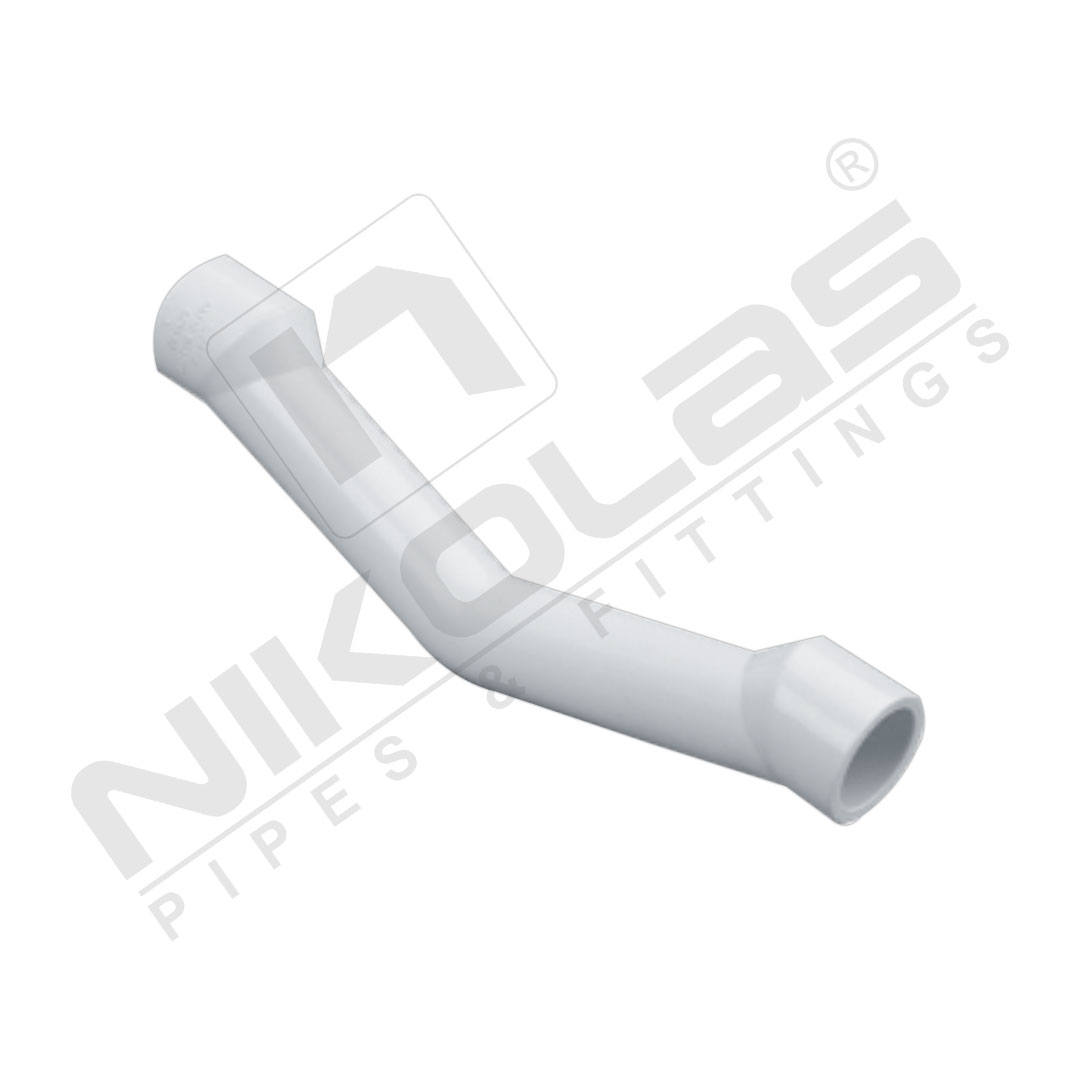

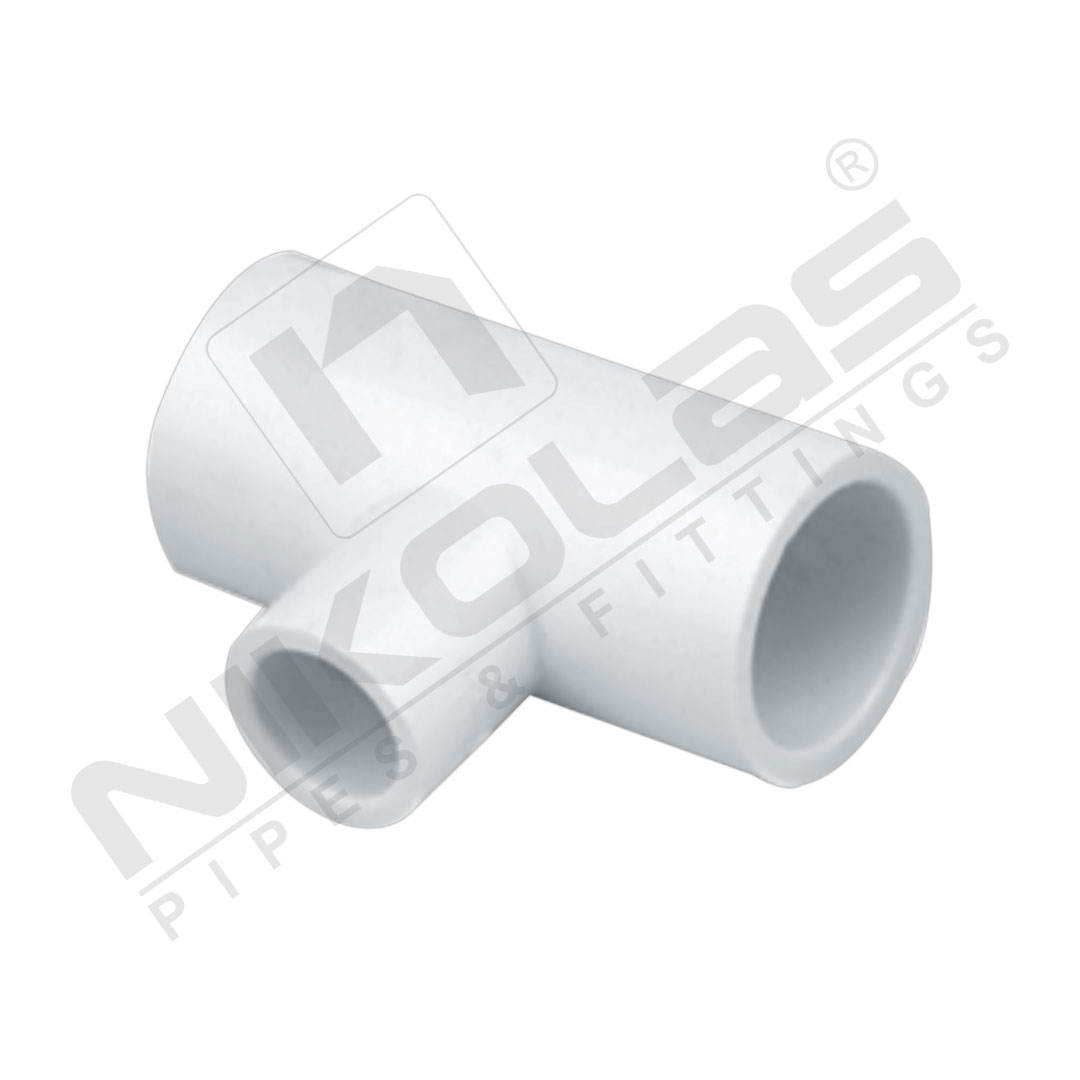

UPVC ASTM D-2467 SCH-80 PLUMBING FITTINGS
UPVC ASTM D-2467 SCH-80 PLUMBING FITTINGS
Product Specification
| Pipe Standard | As Per ASTM D 1785 SCH - 40, SCH - 80 |
|---|---|
| Fittings Standards | As Per ASTM D 2467 SCH - 80 |
| Material | U-PVC Compound |
| Standard Length | 3 meter & 6 meter |
| Solvent Cement | Heavy Duty |
| Colour | White |
| Pressure Class | Pipe SCH-40 & SCH-80, Fittings SCH-80 |
| Range of Pipes | From ½ "to 4" |
| Range of Fittings | From ½ "to 2" |
Salient Features & Benefits
- Superior Durability
- High Corrosion Resistance
- Chemical Resistance
- Suitable for cold water
- Smooth interior
- Easy Instillation
- Versatile application
- Compliance with Standards
- Maintenance Free
- Strong and light weight
- UV Stabilized
| Nominal Bore | Outside Diameter | SCH -40 | SCH-80 | |||||
|---|---|---|---|---|---|---|---|---|
| Wall Thickness | Working Pressure | Wall Thickness | Working Pressure | |||||
| Inch | mm | mm | MPa | Psi | mm | mpa | psi | |
| ½ | 21.34 ± 0.10 | 2.77 + 0.51 | 4.14 | 600 | 3.73 + 0.51 | 5.86 | 850 | |
| ¾ | 26.67 ± 0.10 | 2.87 + 0.51 | 3.31 | 480 | 3.91 + 0.51 | 4.76 | 690 | |
| 1 | 33.40 ± 0.13 | 3.38 + 0.51 | 3.10 | 450 | 4.55 + 0.53 | 4.34 | 630 | |
| 1 ¼ | 42.16 ± 0.13 | 3.56 + 0.51 | 2.55 | 370 | 4.85 + 0.58 | 3.59 | 520 | |
| 1 ½ | 48.26 ± 0.15 | 3.68 + 0.51 | 2.28 | 330 | 5.08 + 0.61 | 3.24 | 470 | |
| 2 | 60.32 ± 0.15 | 3.91 + 0.51 | 1.93 | 280 | 5.54 + 0.66 | 2.76 | 400 | |
| 2 ½ | 73.02 ± 0.18 | 5 16 + 0.61 | 2.07 | 300 | 7.01 + 0.84 | 2.90 | 420 | |
| 3 | 88.90 ± 0.20 | 5.49 + 0.66 | 1.79 | 260 | 7.62 + 0.91 | 2.55 | 370 | |
| 4 | 114.30 ± 0.23 | 6.02 + 0.71 | 1.52 | 220 | 8.56 + 1.02 | 2.21 | 320 | |
